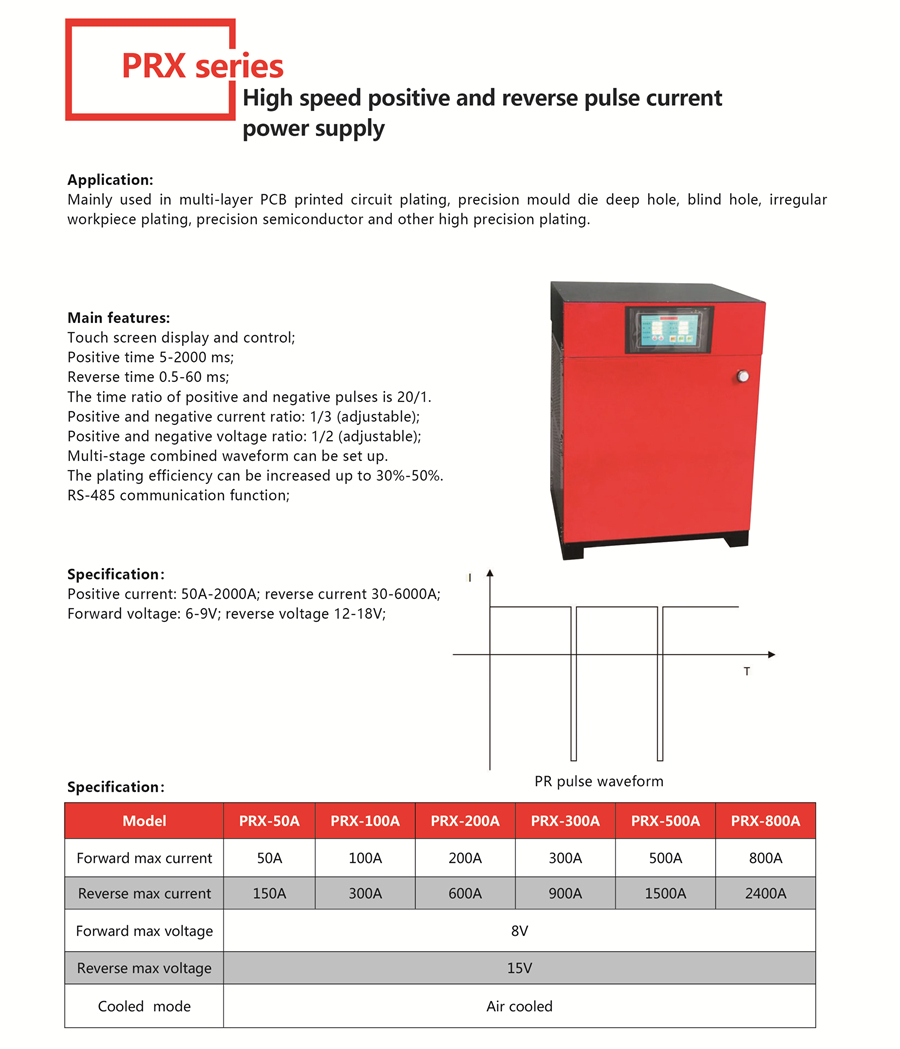

IGBT Rectifier provides wide range of power solutions which varies as DC Current range: 100A to 10000A and DC Voltage range: 6V to 30V for various electroplating process, including for nickel plating, copper plating, zinc plating, chrome plating, Hard chrome plating, tin plating and Anodizing. Based on high-speed IGBT technology, IGBT plating rectifiers provides high efficiency and performance with module structure with compact size, meeting all process requirements and guarantee the user excellent results.
Overview of IGBT rectifier advantages:
| IGBT RECTIFIRE | |
| Voltage regulation mode | Pulse width modulation (PWM) technology |
| Current expansion | Available due to modular design |
| Working frequency | 50-60hz |
| Average efficiency (full load | More than 90% |
| Power saving | More than 17% saving from SCR |
| Plating Time | Less. About 35% saving from SCR |
| Noise | Low |
| Size | Small |
| Weight | Light |
| Working Mode | 100% 24 hours continuous running |
| Cooled Mode | Air cooled/water cooled |
